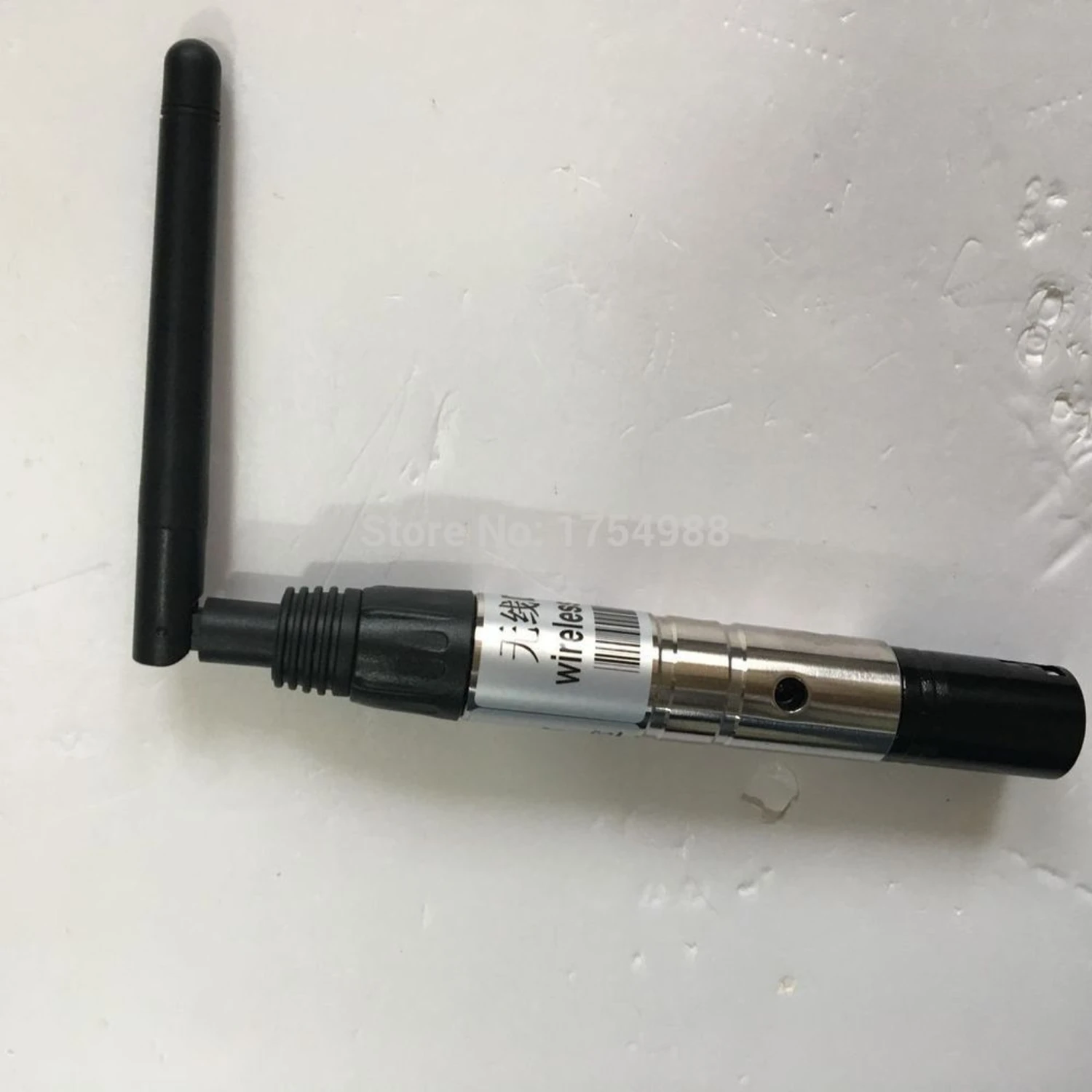

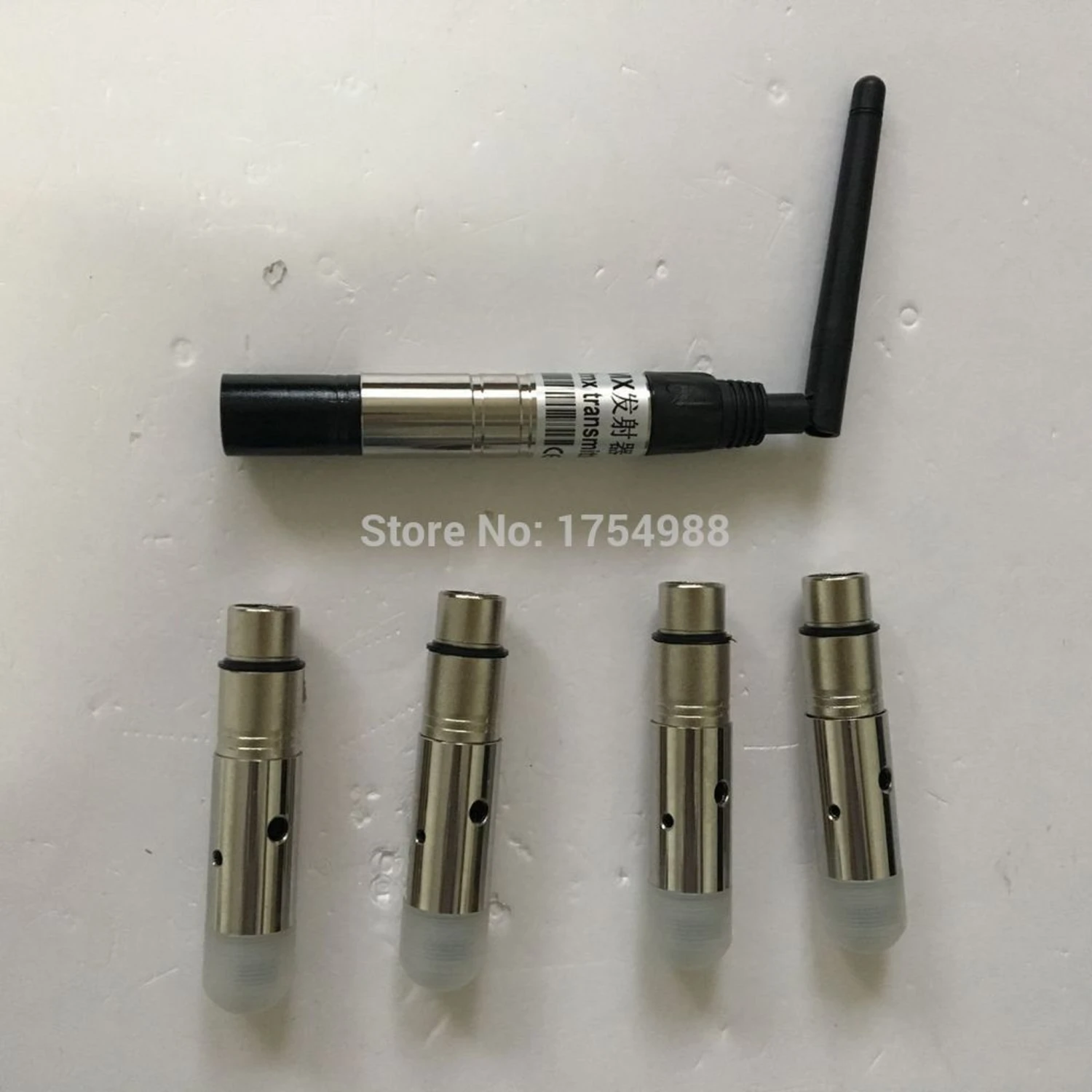

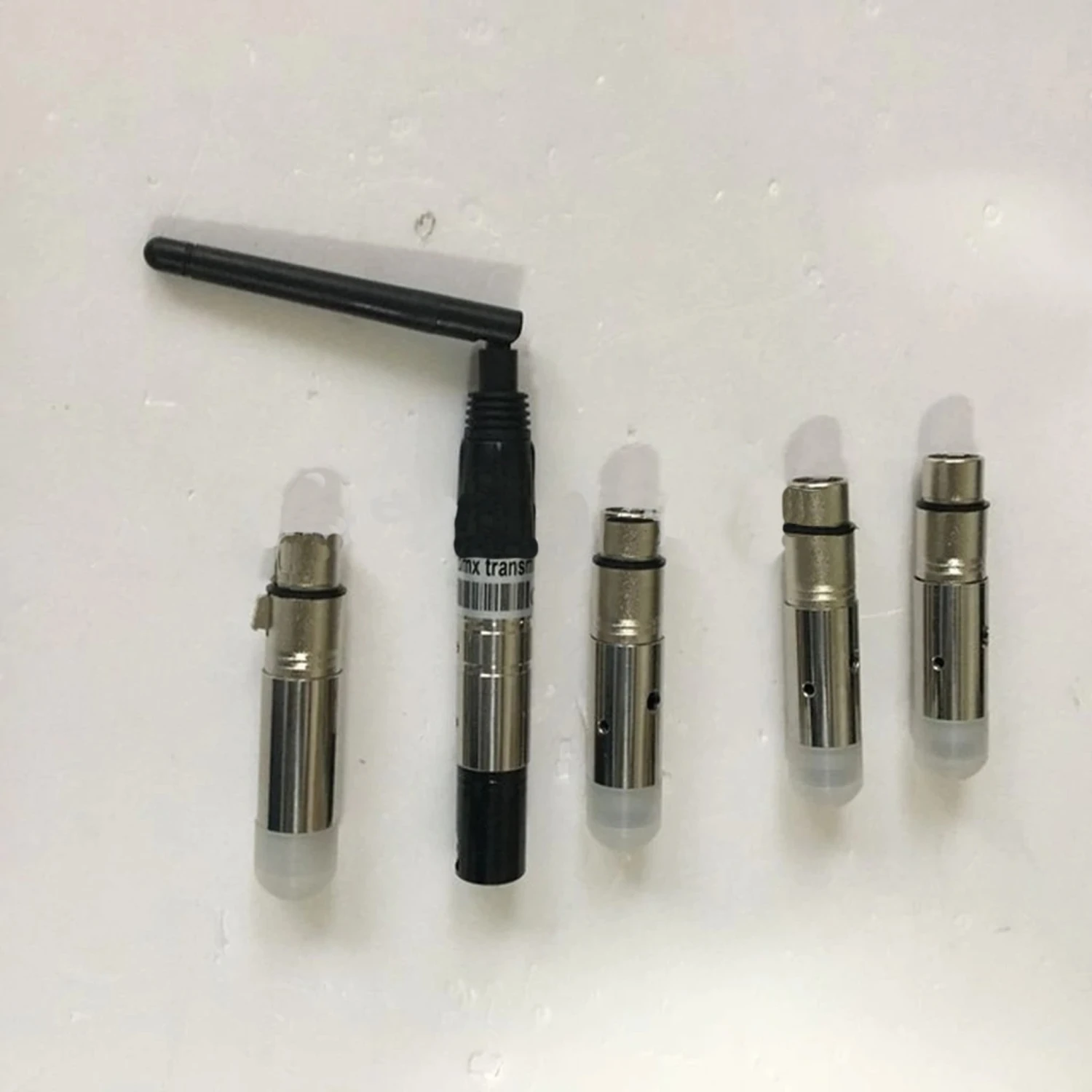

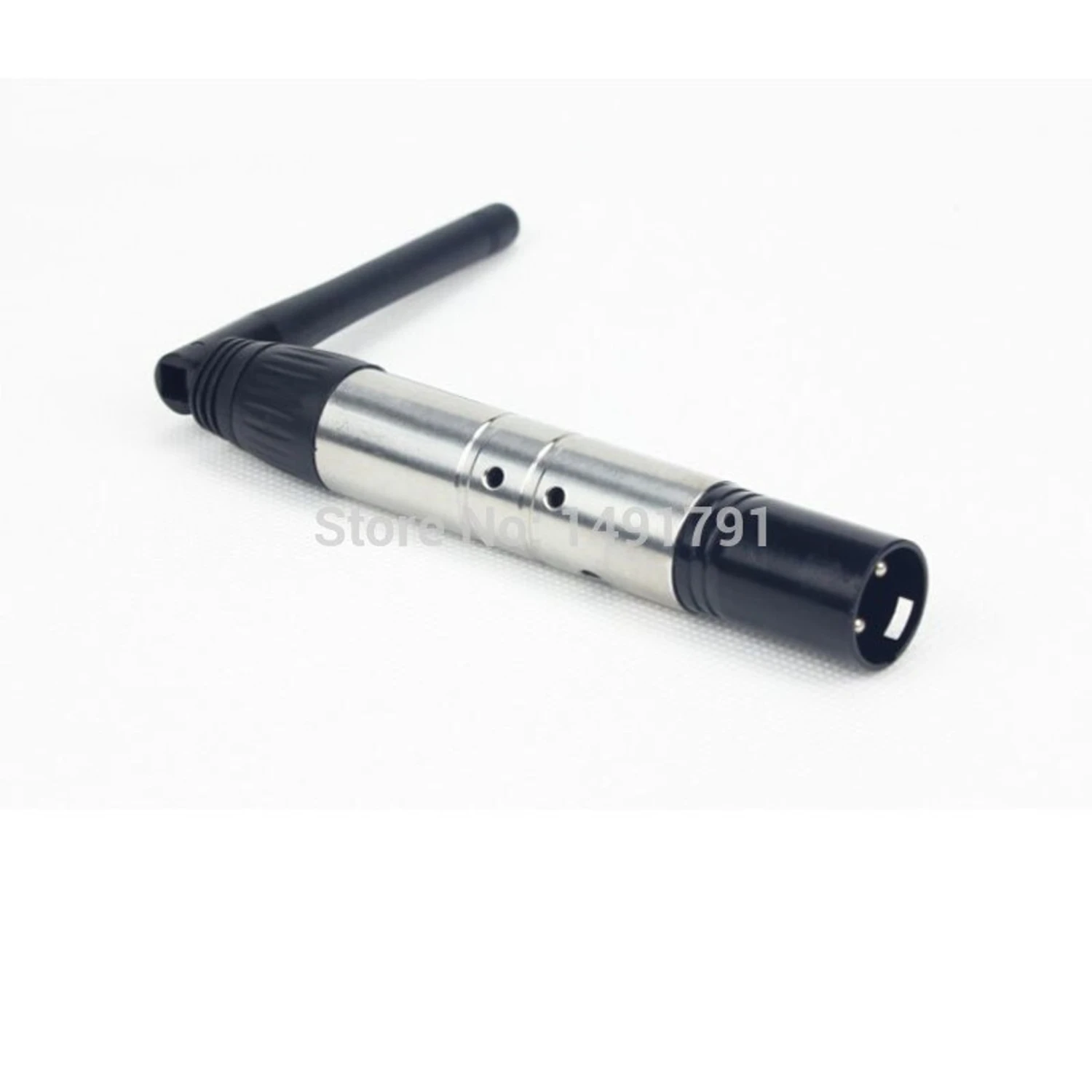

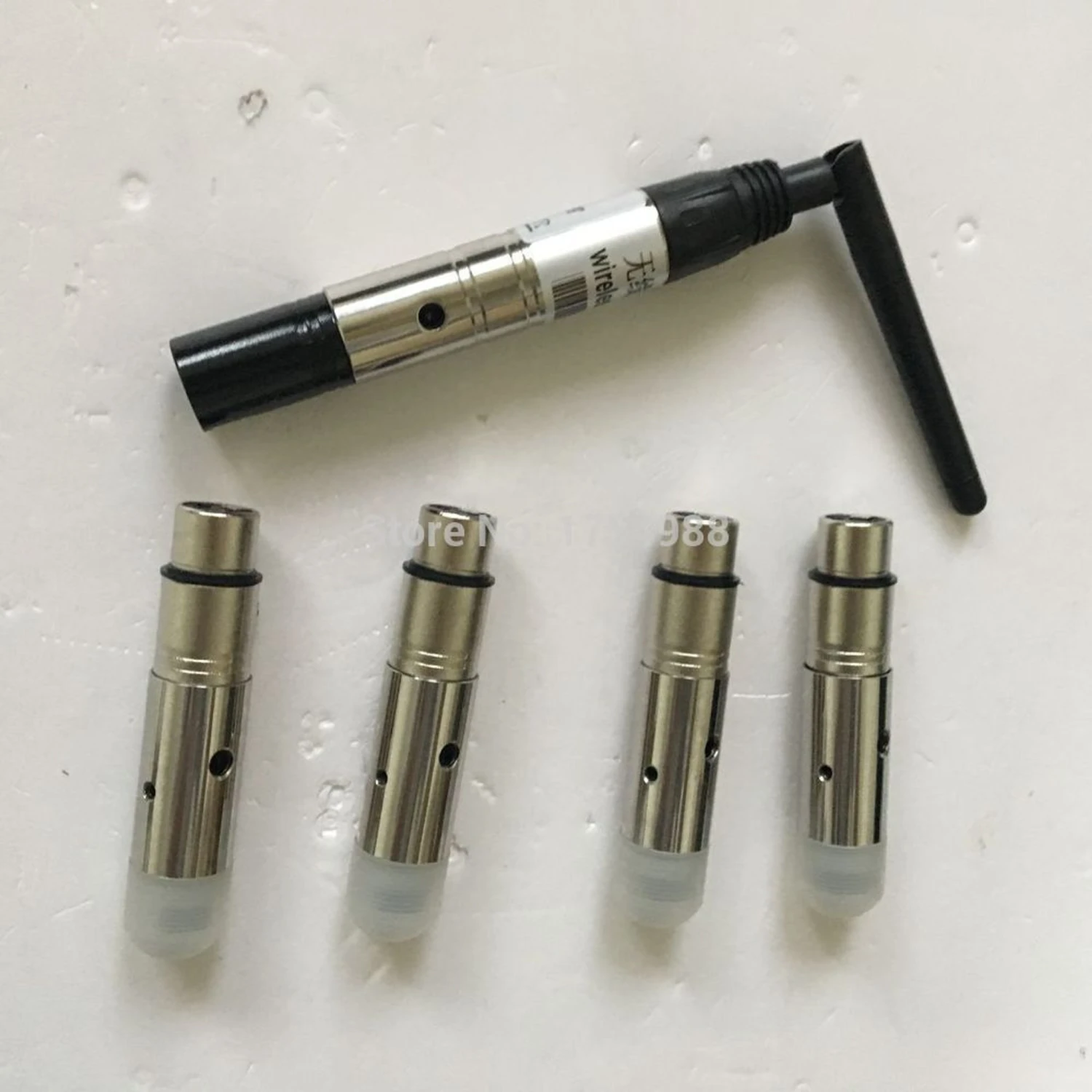

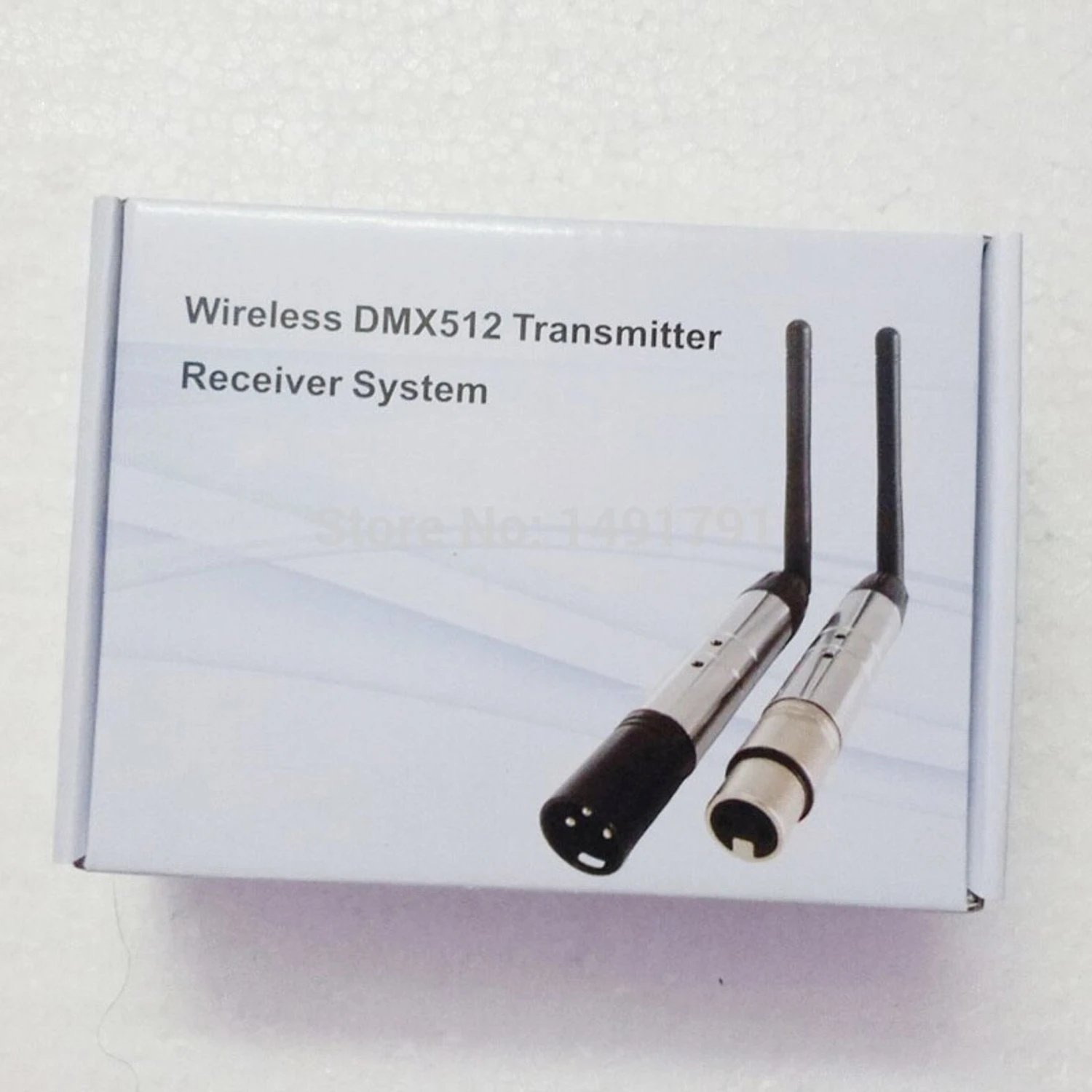

2.4G Wireless DMX512 Receiver And Transmitter (5 Pcs) – Escape Room Prop

2.4G Wireless DMX512 Receiver and Transmitter (5 pcs) – Escape Room Prop

Features:
DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console). No time delay when signal data is transmitting; signal data is real time and reliable. This product adopts a 2.4G ISM frequency section. Highly effective GFSK modulation, communication design; 126 channels jumping frequency automatically, high anti-jamming ability.

Specifications:
1. 2.4G wireless DMX512 receiver
2. 126 channels jumping frequency automatically, high anti-jamming ability.
3. 7 groups ID code settable. User can use 7 groups of individual wireless net without any interference.
4. Tricolor LED displaying indicators)
5. Input voltage: DC5V 500mA
6. Communication distance: 400 m (1,132 ft., visible distance)
7. Work frequency section: 2.4G ISM.
8. Receiver sensitivity: -94dBm

Operating manual:
ID code and LED color corresponding relationship:
1: RED
2: GREEN
3: RED+GREEN
4: BLUE
5: RED+BLUE
6: GREEN+BLUE
7: RED+GREEN+BLUE

Steps:
1. Press the switch above the side of the LED indicator to indicate ID setting.
2. Press again to set IC to the color ID desired. Adding 1 each time you press the switch will advance the color ID code.
3. Working condition:
LED constant light up: No DMX or wireless signal.
Green LED flash: receiving
4. RF frequency 2.400 – 2.525G, total 126 channels, automatic searching.
5. ID Code “1-7” groups ID code, press ‘KEY’ for setting; can only can work under same ID code of transmitter and receiver.
