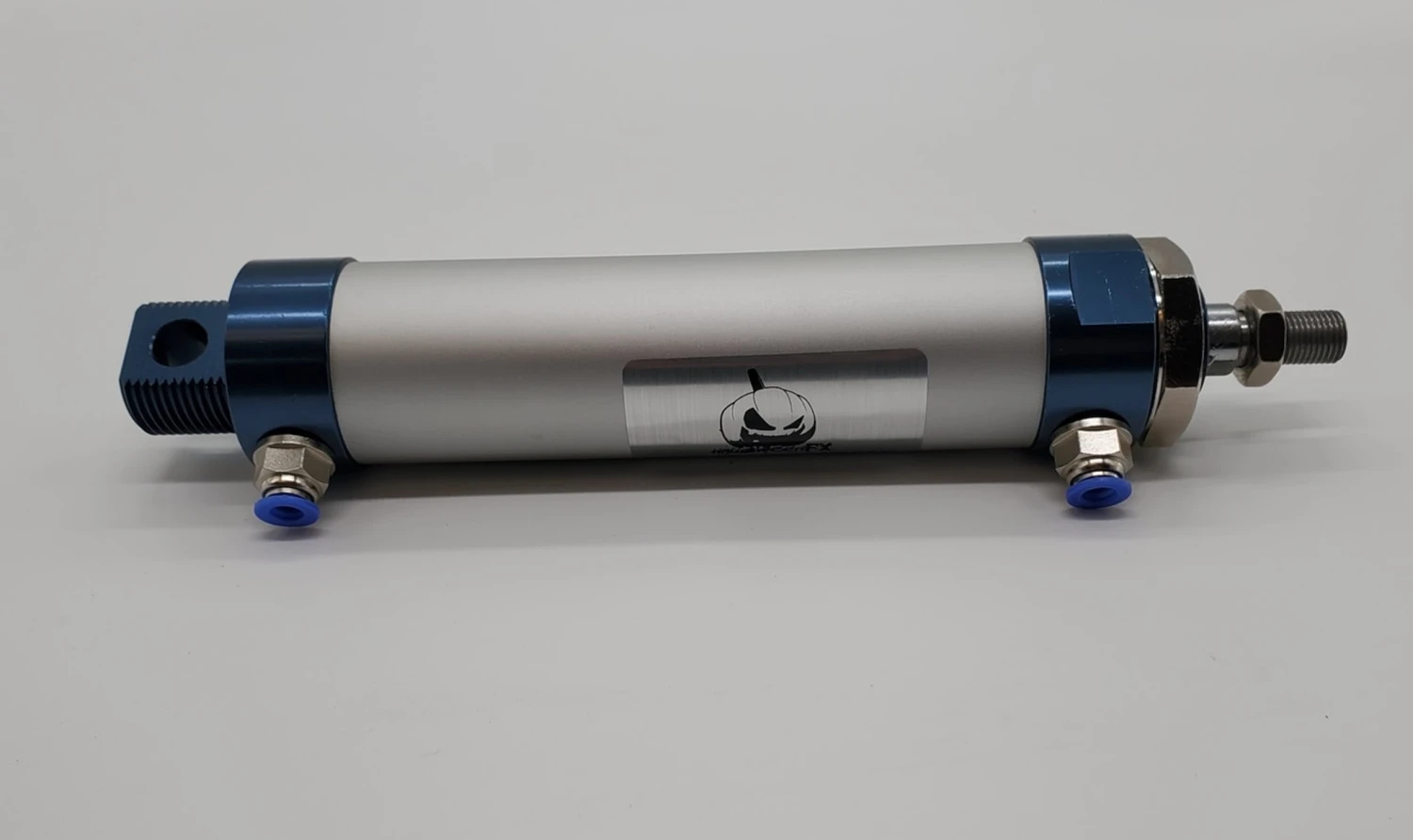

Extra Large Double Acting Cylinder1.75″ X 4″ Stroke (1.75″ Bore)

These pneumatic cylinders have a very large bore (they are a fatter cylinder). This gives them lots of lifting power.

They come in standard 4″ Stroke. This gives you plenty of room to do most heavy ifting applications.

They extend quickly when air is applied, and snap closed quickly when Solenoid is triggered (when used with a 4-way solenoid).

You can also use these with a 2-way or 3-way solenoid if you are using gravity/weight to push the cylinder back down.

When the solenoid is triggered, air is applied through the bottom hole – forcing rod up very quickly. Then, when the solenoid is triggered again, air is supplied through the top hole, retracting the cylinder rapidly and keeping the cylinder closed.

Great for quick motion, scare props, and for making an in-out or up-down motion in a prop.

Examples:
Bouncing Barrel
Door Banger
Coffin Lid Banger
Barrel Lid Banger
Monster in a Box
Trash Can Trauma

Bore: This is the measure of the diameter of the cylinder. Bigger bore size = more air required to open cylinder = more torque (power) to move things.
With this 1.75″ BORE, you will get about 200 lbs. of force at 100 PSI of air pressure.

Stroke: This is the measure of how far out the shaft of the cylinder will extend when fully extended.
This cylinder comes in a standard 4″ stroke.

Air Holes: Cylinder comes with two push-in fittings that accept 3/8″ airline.

Cylinder Hardware: Click here to view mounting hardware for these cylinders: https://www.halloweenfxprops.com/pneumatic-hardware/
